MusicStore - Part1 - Init

Let’s start building a platform where musicians can sell their albums online.

Code has been uploaded to github https://github.com/jay-coder/MusicStore

What technologies are we going to use:

• WebUI - Angular 5.2 SPA application hosted on .NET Core 2.1
• WebAPI - .NET Core 2.1 API
• IdentityServer4 - .NET Core 2.1 Web Application

Identity Server 4 is an OpenID Connect and OAuth 2.0 framework which can be used to manage tokens that being used between WebUI and WebAPI.

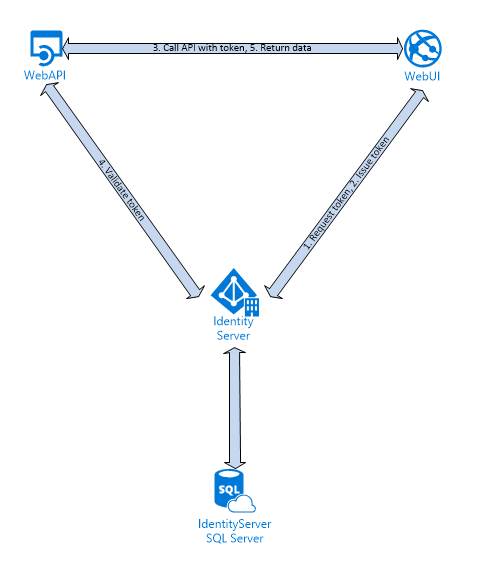

Here is the diagram of the solution:

1. WebUI will ask user to login
2. After login successfully, IdentityServer will issue JWT token back to WebUI
3. WebUI will consume API resources with token attached in header
4. WebAPI will talk to IdentityServer to validate token
5. If token is valid, WebAPI will return JSON data back to WebUI

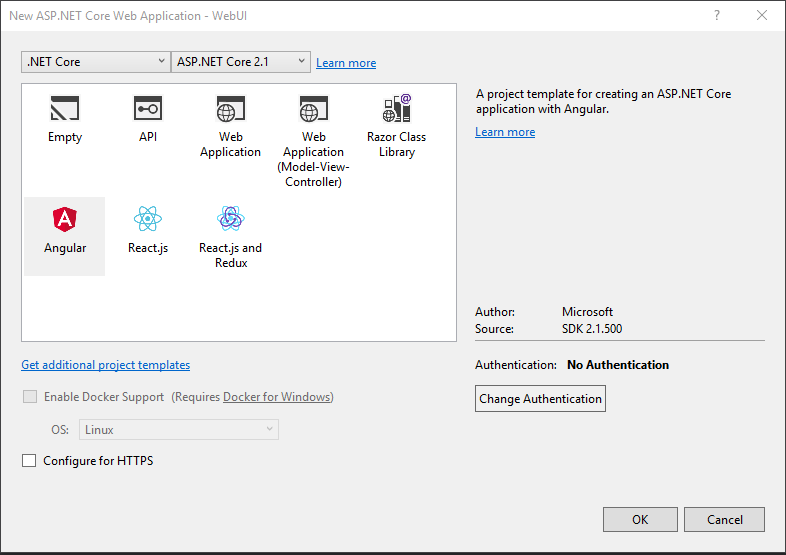

Setup WebUI project

In Properties > launchSettings.json, update the applicationUrl port to 30002

  "iisSettings": {
    "windowsAuthentication": false,
    "anonymousAuthentication": true,
    "iisExpress": {
      "applicationUrl": "http://localhost:30002",
      "sslPort": 0
    }
  }

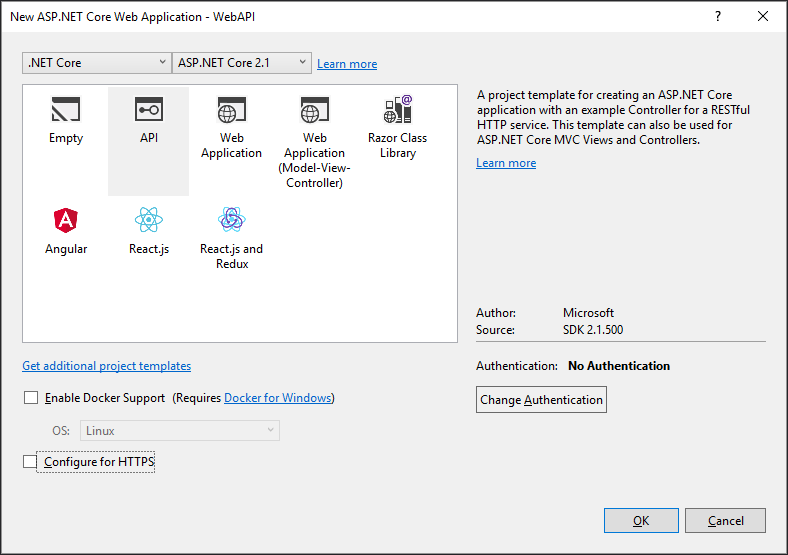

Setup WebAPI project

In Properties > launchSettings.json, update the applicationUrl port to 30001

  "iisSettings": {
    "windowsAuthentication": false,
    "anonymousAuthentication": true,
    "iisExpress": {
      "applicationUrl": "http://localhost:30001",
      "sslPort": 0
    }
  },

Setup IdentityServer project

Clone IdentityServer from its official github:

git clone https://github.com/IdentityServer/IdentityServer4.Quickstart.UI

In Properties > launchSettings.json, update the applicationUrl port to 30000

  "iisSettings": {
    "windowsAuthentication": false,
    "anonymousAuthentication": true,
    "iisExpress": {
      "applicationUrl": "http://localhost:30000",
      "sslPort": 0
    }
  },

Why set port over 30000

When we deploy web applications to local Kubernetes in the future, we can only access pod by port-forward to NodePort, which only allows port 30000 to 32767. To make local dev URL consistent with Kubernetes, I would set URL port between 30000 and 32767.

kubectl port-forward musicstore-project-webui-65c8bcb489-lhjcr 30002:80

Run these projects

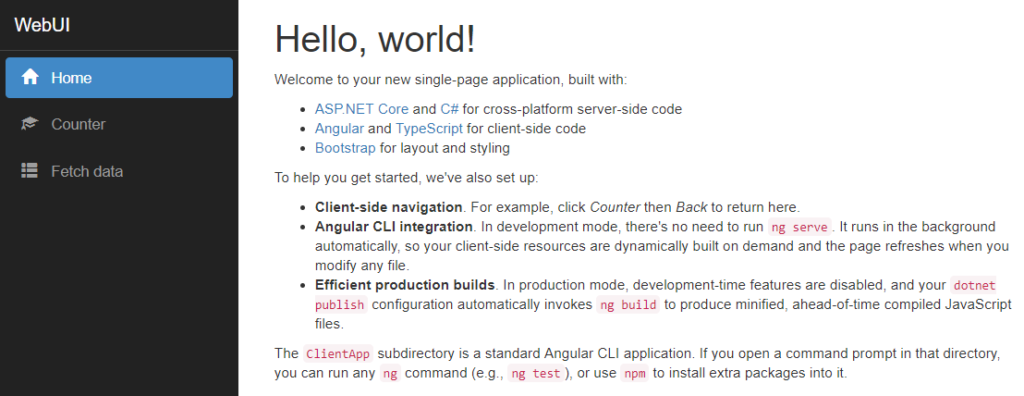

1. WebUI - should see Hello, world!

2. WebAPI - should see the default values API

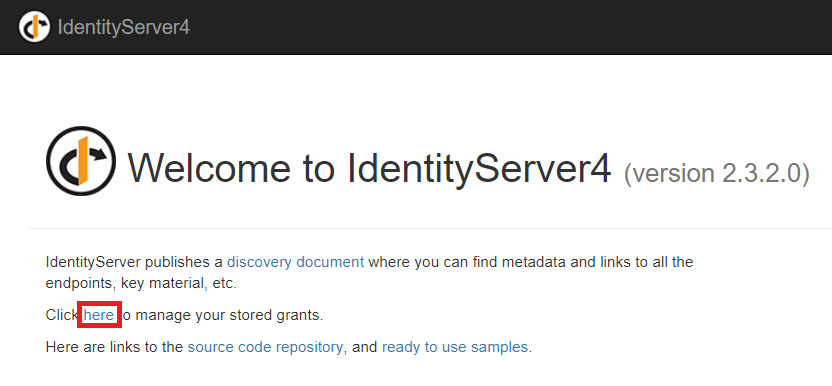

3. IdentityServer - should see welcome page

   Click “here” link to login to IdentityServer, username and password can be:

   • bob / bob
   • alice / alice

   NOTE: I added test users instead of retrieving users from database as of now, I will add database support in MusicStore - Part3 - EF to SQL Server.

    public void ConfigureServices(IServiceCollection services)
    {
        services.AddMvc();
        services.AddIdentityServer()
            .AddDeveloperSigningCredential()
            .AddInMemoryIdentityResources(Resources.GetIdentityResources())
            .AddInMemoryApiResources(Resources.GetApiResources())
            .AddInMemoryClients(Clients.Get())
            .AddTestUsers(TestUsers.Users);
    }


4. Enable Swagger to WebAPI

   Swagger is a great tool that can help developers test their Restful API quickly, for example, we can easily send Get, Post, Put, Delete request to Restful API like Postman.

   • Add Nuget Package (Swashbuckle.AspNetCore)
   • Use Swagger in Startup.cs

       // Startup.cs
       public void ConfigureServices(IServiceCollection services)
       {
         ......
         // Add Swagger
         services.AddSwaggerGen(c =>
         {
           c.SwaggerDoc("v1", new Info { Title = "MusicStore API", Version = "v1" });
         });
         ......
       }

       public void Configure(IApplicationBuilder app, IHostingEnvironment env)
       {
         ......
         // Use Swagger
         app.UseSwagger();
         app.UseSwaggerUI(c =>
         {
           c.SwaggerEndpoint("/swagger/v1/swagger.json", "MusicStore API V1");
         });
       }


   • Change launch URL to swagger

       // launchSettings.json
       {
         "$schema": "http://json.schemastore.org/launchsettings.json",
         "iisSettings": {
           "windowsAuthentication": false,
           "anonymousAuthentication": true,
           "iisExpress": {
             "applicationUrl": "http://localhost:30001",
             "sslPort": 0
           }
         },
         "profiles": {
           "IIS Express": {
             "commandName": "IISExpress",
             "launchBrowser": true,
             "launchUrl": "swagger",
             "environmentVariables": {
               "ASPNETCORE_ENVIRONMENT": "Development"
             }
           },
           "WebAPI": {
             "commandName": "Project",
             "launchBrowser": true,
             "launchUrl": "swagger",
             "applicationUrl": "http://localhost:5001",
             "environmentVariables": {
               "ASPNETCORE_ENVIRONMENT": "Development"
             }
           }
         }
       }

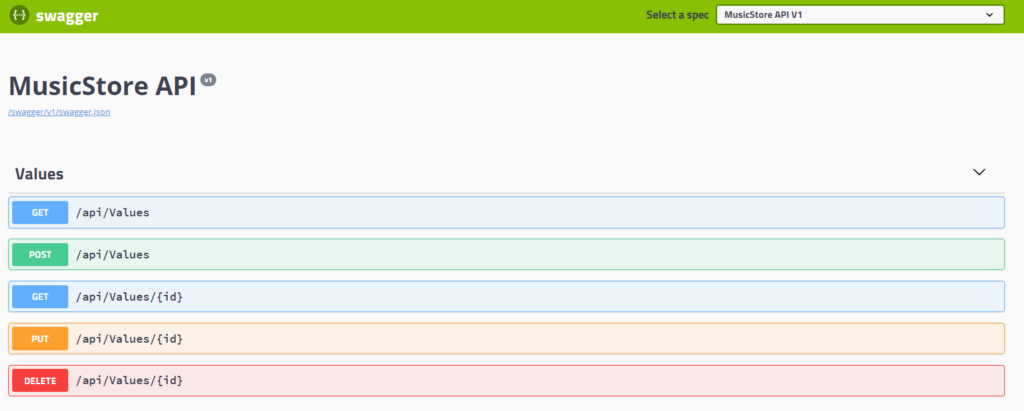

   Swagger UI once configured correctly
