MusicStore – Part5 – Authorization

Let’s authorize users by their types - ONLY “Musician” can access to Values API.

1. Include UserType in claims in IdentityServer4

    // ProfileService.cs
    public Task GetProfileDataAsync(ProfileDataRequestContext context)
    {
      var user = _userManager.GetUserAsync(context.Subject).Result;
      if (user != null)
      {
        var claims = new List<Claim>();
        claims.Add(new Claim(AuthorizeClaim.FirstName, string.IsNullOrEmpty(user.FirstName) ? string.Empty : user.FirstName));
        claims.Add(new Claim(AuthorizeClaim.LastName, string.IsNullOrEmpty(user.LastName) ? string.Empty : user.LastName));
        claims.Add(new Claim(AuthorizeClaim.UserType, user.UserType.ToString()));
        context.IssuedClaims.AddRange(claims);
      }
      return Task.FromResult(0);
    }


2. Add authorization policies in WebAPI

   Policies can be built by claim, role, scope or assertion with conditions.

    // Startup.cs
    public void ConfigureServices(IServiceCollection services)
    {
      var svcBuilder = services
        .AddMvcCore()
        .AddApiExplorer()
        .AddJsonFormatters();

      svcBuilder = svcBuilder.AddAuthorization(
        options => BuildAuthorizationPolicies(options)
      );
      ......
    }

    private void BuildAuthorizationPolicies(AuthorizationOptions options)
    {
      //Basic Policies
      foreach (var userType in Enum.GetNames(typeof(EnumUserType)))
      {
        options.AddPolicy(userType, policy => policy.RequireClaim(AuthorizeClaim.UserType, userType));
      }
    }


3. Add policy to ValuesController to ONLY allow “Musician”

    [Authorize(Policy = AuthorizePolicy.Musician)]
    [Route("api/[controller]")]
    [ApiController]
    public class ValuesController : ControllerBase
    {
        ......
    }


4. Test

   Login with Microsoft account will return 403 when clicking on Sample, as external users are “Audience”.

   However, Alice can get results from Values API, because she belongs to “Musician”.

5. Lock down permissions for WebUI

   • Add authguard.service.ts to validate UserType from claims

       // authguard.service.ts
       import { Injectable } from '@angular/core';
       import { ActivatedRouteSnapshot, CanActivate, Router, RouterStateSnapshot } from '@angular/router';
       import { OAuthService } from 'angular-oauth2-oidc';

       @Injectable()
       export class AuthGuardService implements CanActivate {
           constructor(
               private _oauthService: OAuthService,
               private _router: Router
           )
           {
           }

           canActivate(route: ActivatedRouteSnapshot, state: RouterStateSnapshot): boolean {
               var isRoleValid = this._oauthService.hasValidIdToken();
               if (isRoleValid)
               {
                   var expectedRole = route.data.expectedRole;
                   var claims = this._oauthService.getIdentityClaims();
                   if (claims && expectedRole) {
                       if (expectedRole.indexOf(",") >= 0) {
                           var roleArray = expectedRole.split(",");
                           isRoleValid = roleArray.indexOf(claims["UserType"]) >= 0
                       }
                       else {
                           isRoleValid = claims["UserType"] == expectedRole;
                       }
                   }
               }
               if (!isRoleValid) {
                 alert("Sorry, you don't have access to this module!");
                 this._router.navigate(['/']);
               }
               return isRoleValid;
           }
       }


   • Apply AuthGuard service to validate role for sample component

       // app.module.ts
       import { BrowserModule } from '@angular/platform-browser';
       import { NgModule } from '@angular/core';
       import { FormsModule } from '@angular/forms';
       import { HttpClientModule, HTTP_INTERCEPTORS } from '@angular/common/http';
       import { RouterModule } from '@angular/router';

       //OAuth2 OIDC Client
       import { OAuthModule } from 'angular-oauth2-oidc';
       //Components
       import { AppComponent } from './app.component';
       import { NavMenuComponent } from './nav-menu/nav-menu.component';
       import { HomeComponent } from './home/home.component';
       import { CounterComponent } from './counter/counter.component';
       import { FetchDataComponent } from './fetch-data/fetch-data.component';
       import { SampleComponent } from './sample/sample.component';
       //Http Interceptor
       import { TokenInterceptor } from './http/token.interceptor';
       //Services
       import { UserProfileService } from './userprofile/userprofile.service';
       //Security
       import { AuthGuardService } from './security/authguard.service';

       @NgModule({
         declarations: [
           AppComponent,
           NavMenuComponent,
           HomeComponent,
           CounterComponent,
           FetchDataComponent,
           SampleComponent
         ],
         imports: [
           BrowserModule.withServerTransition({ appId: 'ng-cli-universal' }),
           HttpClientModule,
           FormsModule,
           OAuthModule.forRoot(),
           RouterModule.forRoot([
             { path: '', component: HomeComponent, pathMatch: 'full' },
             { path: 'counter', component: CounterComponent },
             { path: 'fetch-data', component: FetchDataComponent },
             {
               path: 'sample',
               component: SampleComponent,
               canActivate: [AuthGuardService],
               data: {
                 expectedRole: 'Musician'
               }
             }
           ])
         ],
         providers: [
           AuthGuardService,
           UserProfileService,
           {
             provide: HTTP_INTERCEPTORS,
             useClass: TokenInterceptor,
             multi: true,
           }
         ],
         bootstrap: [AppComponent]
       })
       export class AppModule { }


6. Test again

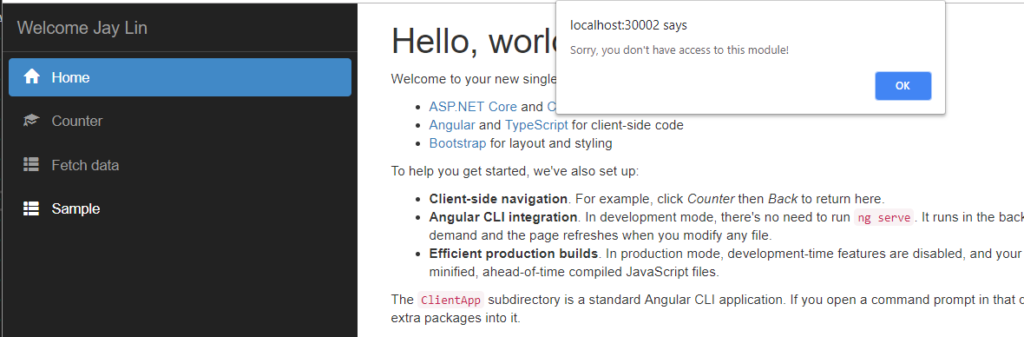

   Login as Microsoft account will see this error message, as it’s been blocked by AuthGuard from front-end part.
