MusicStore - Part4 - External Login

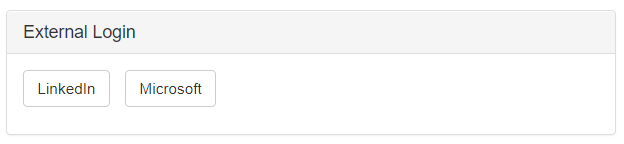

Let’s enable the external login, so that Microsoft and LinkedIn users don’t need to sign up in Music Store.

1. Microsoft

   • Create an app in Microsoft via https://apps.dev.microsoft.com/
     • Fill in Name

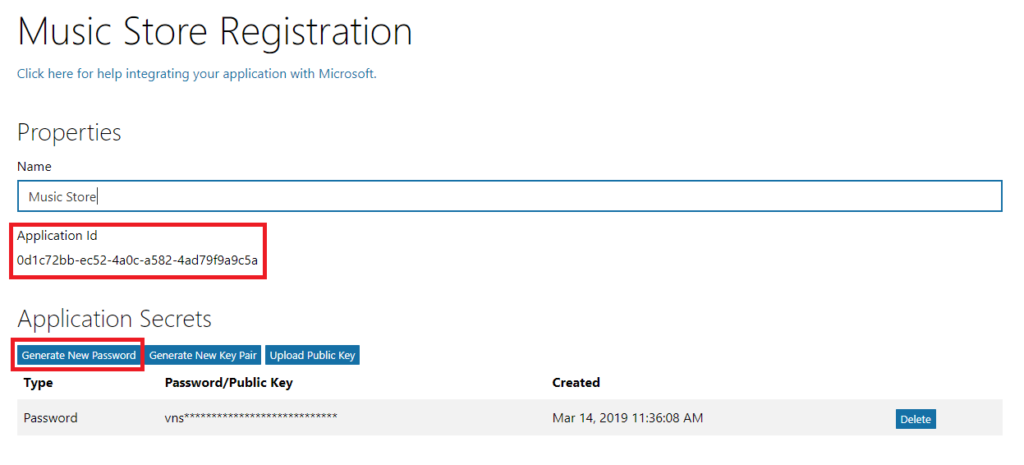

     • Generate New Password

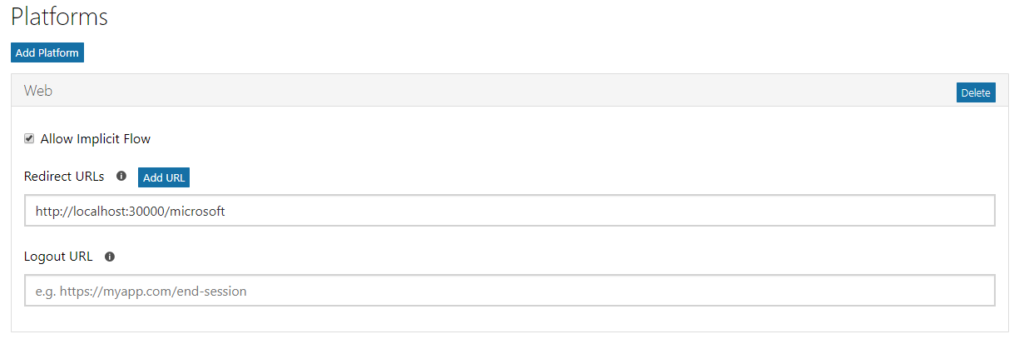

     • Add Platform

     NOTE: Redirect URLs need to be consistent with CallbackPath in Startup.cs, otherwise, you will get an error:
     The provided value for the input parameter 'redirect_uri' is not valid

   • Update IdentityServer4 to authenticate Microsoft users

     • Install NuGet Package - Microsoft.AspNetCore.Authentication.MicrosoftAccount
     • Add Microsoft Authentication

     // Startup.cs
     public void ConfigureServices(IServiceCollection services)
     {
         ......

         services.AddAuthentication()
           .AddMicrosoftAccount(options =>
           {
             options.SignInScheme = IdentityServerConstants.ExternalCookieAuthenticationScheme;

             options.ClientId = Configuration["Microsoft:ApplicationId"];
             options.ClientSecret = Configuration["Microsoft:Password"];

             options.CallbackPath = new PathString("/microsoft");
             options.SaveTokens = true;
           });
         ......
     }

     public void Configure(IApplicationBuilder app)
     {
         ......
         app.UseAuthentication();
         ......
     }


     • Store Application Id and Password from #1.1 to appsettings.Development.json

     {
       ......
       "Microsoft": {
         "ApplicationId": "0d1c72bb-ec52-4a0c-a582-4ad79f9a9c5a",
         "Password": "vnssBKZWR237*ujtZW44@*|"
       }
       ......
     }


2. LinkedIn

   NOTE: LinkedIn upgraded their API recently, it won't carry back user email, a key field in ApplicationUser, so LinkedIn user could login.

   • Create an app in LinkedIn via https://www.linkedin.com/developers/apps

     • Fill in App name, Company name, App description, Logo, and Business email

   • Update IdentityServer4 to authenticate LinkedIn users

     • Install NuGet Package - AspNet.Security.OAuth.LinkedIn

     • Add LinkedIn Authentication

       public void ConfigureServices(IServiceCollection services)
       {
           ......

           services.AddAuthentication()
             .AddLinkedIn(options =>
             {
               options.SignInScheme = IdentityServerConstants.ExternalCookieAuthenticationScheme;

               options.ClientId = Configuration["LinkedIn:ClientId"];
               options.ClientSecret = Configuration["LinkedIn:ClientSecret"];

               options.CallbackPath = new PathString("/linkedin");
               options.SaveTokens = true;
             });
           ......
       }

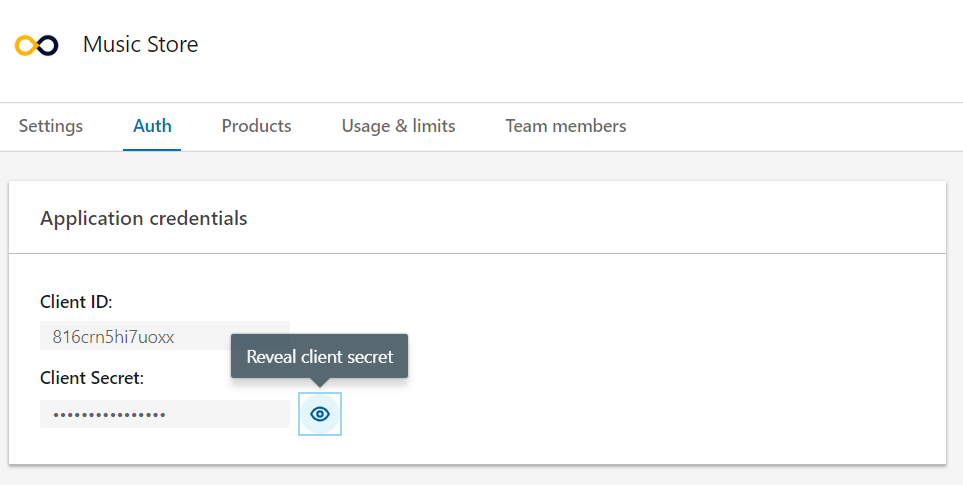

     • Store Client Id and Client Secret from #2.1 to appsettings.Development.json

       {
         ......
         "LinkedIn": {
           "ClientId": "816crn5hi7uoxx",
           "ClientSecret": "lyV15uviOnli9tQr"
         }
         ......
       }


3. Authenticate users from external OAuth 2.0 providers

   • Replace TestUserStore with AspNetIdentity UserManager and SignInManager

     // ExternalController.cs
     private readonly UserManager<ApplicationUser> _userManager;
     private readonly SignInManager<ApplicationUser> _signInManager;
     public ExternalController(
       IIdentityServerInteractionService interaction,
       IClientStore clientStore,
       IEventService events,
       UserManager<ApplicationUser> userManager,
       SignInManager<ApplicationUser> signInManager
     )
     {
       _interaction = interaction;
       _clientStore = clientStore;
       _events = events;

       _userManager = userManager;
       _signInManager = signInManager;
     }


   • External login callback

       // ExternalController.cs
       [HttpGet]
       public async Task<IActionResult> Callback()
       {
         // read external identity from the temporary cookie
         var result = await HttpContext.AuthenticateAsync(IdentityServer4.IdentityServerConstants.ExternalCookieAuthenticationScheme);
         if (result?.Succeeded != true)
         {
           throw new Exception("External authentication error");
         }

         var extPrincipal = result.Principal;
         var expProperties = result.Properties;
         var claims = extPrincipal.Claims.ToList();

         var userIdClaim = claims.FirstOrDefault(x => x.Type == JwtClaimTypes.Subject);
         if (userIdClaim == null)
         {
           userIdClaim = claims.FirstOrDefault(x => x.Type == ClaimTypes.NameIdentifier);
         }
         if (userIdClaim == null)
         {
           throw new Exception("Unknown userid");
         }

         claims.Remove(userIdClaim);
         var provider = expProperties.Items["scheme"];
         var userId = userIdClaim.Value;

         var user = await _userManager.FindByLoginAsync(provider, userId);
         if (user == null)
         {
                       // Register if user doesn't exist
           var candidateId = Guid.NewGuid();
           user = new ApplicationUser();
           var emailClaim = claims.FirstOrDefault(x => x.Type == ClaimTypes.Email);
           if (emailClaim != null)
           {
             user.UserName = emailClaim.Value;
             user.Email = emailClaim.Value;
             user.EmailConfirmed = true;
           }
           var firstNameClaim = claims.FirstOrDefault(x => x.Type == ClaimTypes.GivenName);
           if (firstNameClaim != null)
           {
             user.FirstName = firstNameClaim.Value;
           }
           var lastNameClaim = claims.FirstOrDefault(x => x.Type == ClaimTypes.Surname);
           if (lastNameClaim != null)
           {
             user.LastName = lastNameClaim.Value;
           }
           user.UserType = EnumUserType.Audience;
           var createResult = await _userManager.CreateAsync(user);
           if (createResult.Succeeded)
           {
             var loginResult = await _userManager.AddLoginAsync(user, new UserLoginInfo(provider, userId, provider));
             if (loginResult.Succeeded)
             {
               // Update Tokens to AspNet Identity
               var externalLoginInfo = new ExternalLoginInfo(extPrincipal, provider, userId, provider)
               {
                 AuthenticationTokens = expProperties.GetTokens()
               };
               await _signInManager.UpdateExternalAuthenticationTokensAsync(externalLoginInfo);
             }
           }
         }
         ......
       }




4. Display user information in WebUI

   • Update welcome message in nav-menu component

     <pre class="wp-block-code"><code>// nav-menu.component.html
     <div class='main-nav'>
       <div class='navbar navbar-inverse'>
         <div class='navbar-header'>
       ......
       <a class='navbar-brand' [routerLink]='["/"]'>Welcome  </a>
         </div>
         ......
       </div>
     </div>


     // nav-menu.component.ts
     import { Component } from '@angular/core';
     import { UserProfileService } from '../userprofile/userprofile.service';

     @Component({
       selector: 'app-nav-menu',
       templateUrl: './nav-menu.component.html',
       styleUrls: ['./nav-menu.component.css']
     })
     export class NavMenuComponent {
       isExpanded = false;
       firstName: string = '';
       lastName: string = '';
       constructor(
         private _userProfileService: UserProfileService
       ) {
         var that = this;
         this._userProfileService.identityClaimsReady.subscribe(function (claims) {
           if (claims) {
             that.firstName = claims["FirstName"];
             that.lastName = claims["LastName"];
           }
         });
       }
       ......
     }


   • Send claims to subscribers

     // app.component.ts
     ......
     import { UserProfileService } from './userprofile/userprofile.service';

     @Component({
       selector: 'app-root',
       templateUrl: './app.component.html',
       styleUrls: ['./app.component.css']
     })
     export class AppComponent implements OnInit {
       title = 'app';
       constructor(
         @Inject(PLATFORM_ID) private platformId: Object,
         private _oauthService: OAuthService,
         private _userProfileService: UserProfileService
       ) {
         ......
       }
       /**
         * On init
         */
       ngOnInit(): void {
         if (isPlatformBrowser(this.platformId)) {
           this._oauthService.loadDiscoveryDocumentAndTryLogin().then(_ => {
             if (!this._oauthService.hasValidIdToken() || !this._oauthService.hasValidAccessToken()) {
               this._oauthService.initImplicitFlow();
             } else {
               this._userProfileService.onIdentityClaimsReadyChanged(this._oauthService.getIdentityClaims());
             }
           });
         }
       }
     }


   • Add userprofile.service.ts to observe claim changes

     import { Injectable } from '@angular/core';
     import { Subject } from 'rxjs';

     @Injectable()
     export class UserProfileService {
       identityClaimsReady: Subject<any> = new Subject();

       onIdentityClaimsReadyChanged(claims): void {
         this.identityClaimsReady.next(claims);
       }
     }


5. Include FirstName and LastName in Claims from IdentityServer4

    // ProfileService.cs
    using IdentityServer4.Models;
    using IdentityServer4.Services;
    using JayCoder.MusicStore.Core.Domain.SQLEntities;
    using Microsoft.AspNetCore.Identity;
    using System.Collections.Generic;
    using System.Security.Claims;
    using System.Threading.Tasks;

    namespace JayCoder.MusicStore.Projects.IdentityServer.Profile
    {
        public class ProfileService : IProfileService
        {
            protected UserManager<ApplicationUser> _userManager;

            public ProfileService(UserManager<ApplicationUser> userManager)
            {
                _userManager = userManager;
            }

            public Task GetProfileDataAsync(ProfileDataRequestContext context)
            {
                var user = _userManager.GetUserAsync(context.Subject).Result;
                if (user != null)
                {
                    var claims = new List<Claim>();
                    claims.Add(new Claim("FirstName", string.IsNullOrEmpty(user.FirstName) ? string.Empty : user.FirstName));
                    claims.Add(new Claim("LastName", string.IsNullOrEmpty(user.LastName) ? string.Empty : user.LastName));
                    context.IssuedClaims.AddRange(claims);
                }
                return Task.FromResult(0);
            }
            ......
        }
    }


   NOTE: In order to access user claims from Angular, AlwaysIncludeUserClaimsInIdToken needs to be true when you register Client in IdentityServer4.

6. Test

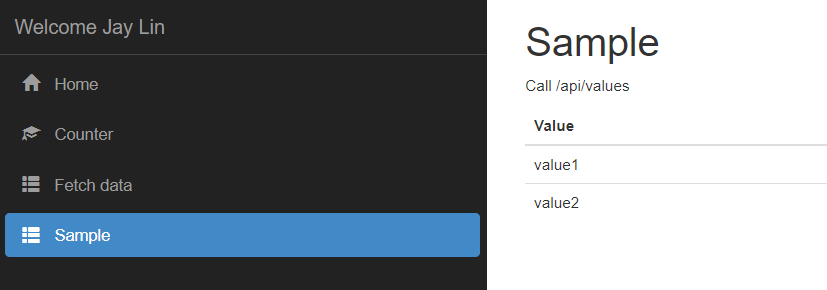

   Login from my Microsoft account and be able to access values API
